Informasi Detail

Jenis:	Antena Tanduk	Daya input maksimum:	100W
Frekuensi antena:	100-6000mhz (disesuaikan)	Gain antena:	6.4-18.1dBi
Polarisasi:	Vertikal	Konektor:	N
Ukuran:	90028080mm	Berat:	1.3kg
Bahan:	Aluminium	VSWR:	≤2.0
Menyoroti:	dual ridge horn antenna for signal jammer , 50W 100W ultra band antenna , aluminum 800MHz-10GHz high gain antenna

Deskripsi Produk

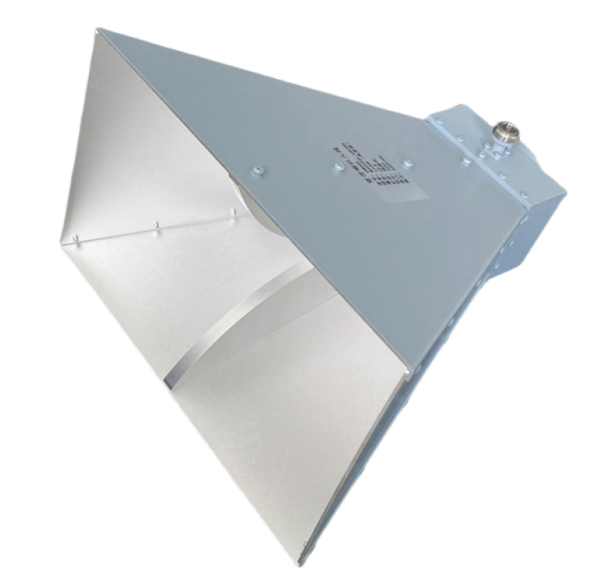

Aluminum800MHz~10GHz 2g 3g 4g 5g 50W 100W ultra band dual Ridge Horn Antenna for signal jammer

This outdoor 800MHz~10GHz frequency Horn Antenna is a directional antenna developed manufactured by Texin specifically for mobile communication base stations, drone countermeasures, and satellite communications. Its 18dBi gain significantly improves signal strength, and its internal copper and PTFE materials ensure efficient reception of RF signals.

The product has N-female RF connector , users can customize 2G, 3G, WIFI, 5.2ghz 5.8ghz according to their needs.The outer cover is waterproof and windproof and can adapt to various complex environments and outdoor installation and use.

Aluminum800MHz~10GHz 2g 3g 4g 5g 50W 100W ultra band dual Ridge Horn Antenna for signal jammer 0

Product specification

Frequency (GHz)	Gain(dBi)	E-Plane(3dB)	H-Plane(3dB)
0.8	6.44	101.5	71.1
0.9	6.82	98.0	67.4
1.0	7.19	93.6	63.3
1.5	9.51	65.5	53.7
2.0	10.8	44.3	41.1
2.5	10.9	36.6	51.2
3.0	12.1	42.9	36.3
3.5	12.9	34.4	30.1
4.0	13.6	27.3	29.4
4.5	13.2	35.8	29.7
5.0	14.6	28.5	21.8
5.5	14.6	28.8	22.6
6.0	14.5	38.9	24.1
6.5	14.4	42.8	21.6
7.0	14.1	41.2	26.6
7.5	14.7	38.3	22.9
8.0	14.4	36.5	26.3
8.5	14.8	34.9	26.7
9.0	15.8	27.7	23.5
9.5	17.3	20.2	19.0
10.0	18.1	18.3	15.5

Product Feature

* ultra band 800-10GHz 2G 3G 4G 5G

*Strong anti interference ability

*Waterproof high high performance transmission

*High gain 18dBi strong signal transmission capability

Application

Label:

Tempat asal:	Shenzhen China
Nama merek:	TeXin
Sertifikasi:	CE ISO

Kuantitas min Order:	1
Harga:	Dapat dinegosiasikan
Kemasan rincian:	kasus tahan lama
Waktu pengiriman:	5-8 hari
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan:	1000/bulan
