Informasi Detail

Kekuatan:	50W	Frekuensi:	6GHz 7GHz
Voltase:	28V	Saat ini:	5.5A
Berat:	Baterai litium bawaan 6000MAh 18650, dapat diberi daya langsung dari catu daya eksternal (bank daya,	Ukuran:	1325324mm
Kepingan:	Gan
Menyoroti:	N-type radar signal shield , 6 GHz RF power amplifier , FPV jammer module with warranty

Deskripsi Produk

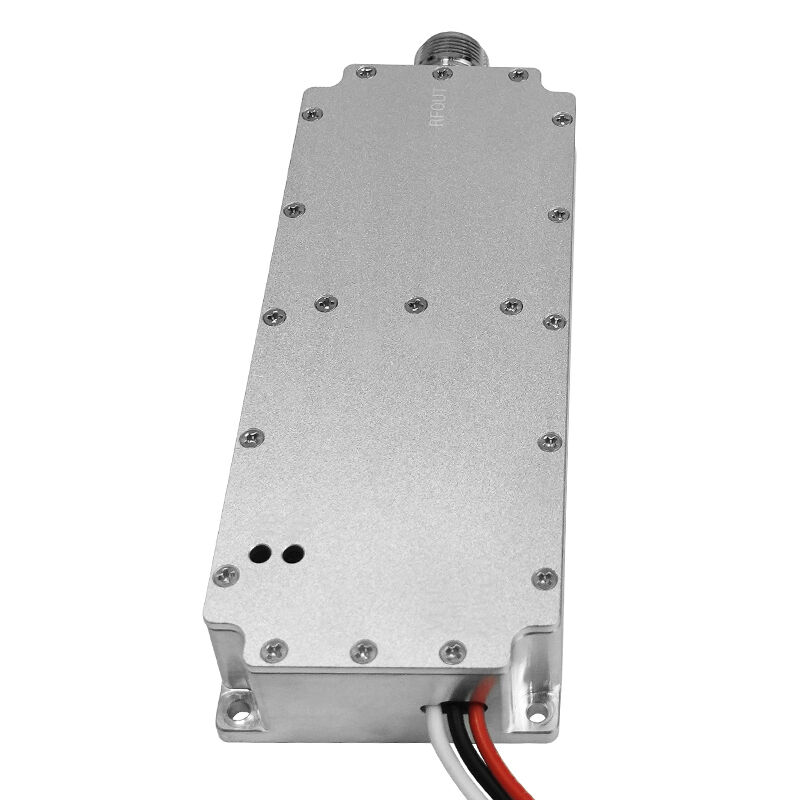

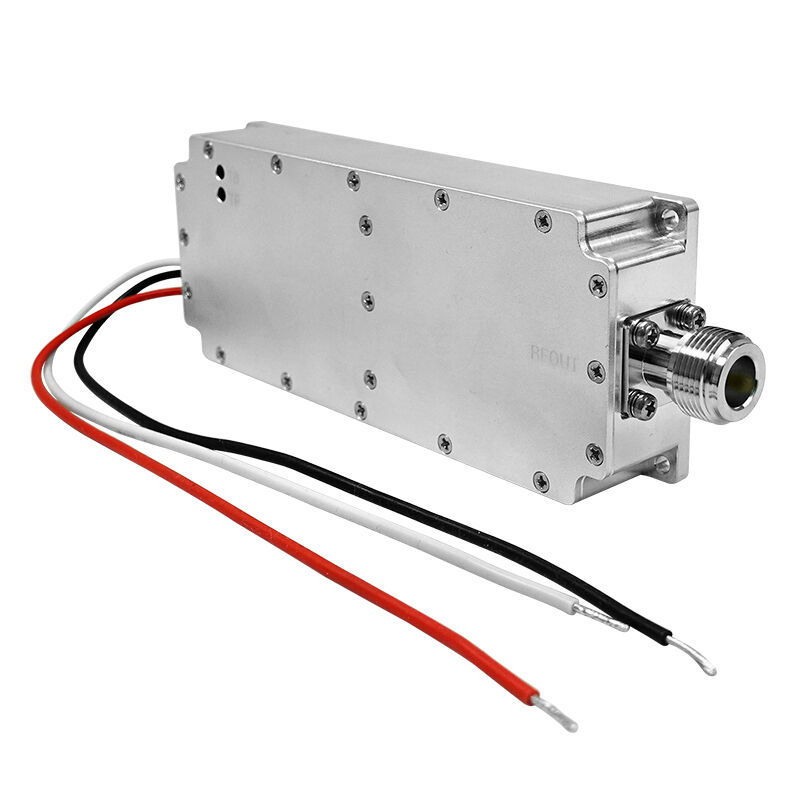

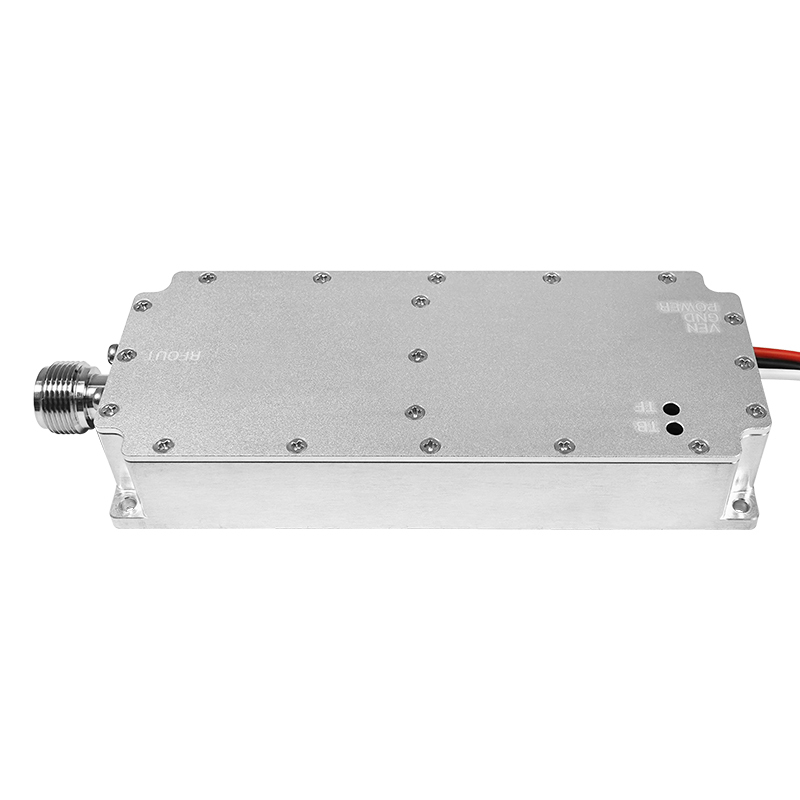

Customized N-type Radar Signal Shield 6 GHz 7 GHz RF Power Amplifier Module

Customized N-type radar signal shield 6 GHz 7 GHz RF power amplifier module

Product Introduction

This 6GHz/7GHz radar and communication jamming RF amplifier module is a professional jamming and signal suppression system with full-band coverage and high reliability. It is fully customizable and offers a powerful and stable RF power advantage in drone countermeasures, radar testing, security shielding, and high-frequency electronic warfare.

Designed specifically for the 6000-7000MHz frequency band, this RF power amplifier module uses industrial-grade components and features high power, long-range, and stable performance. Inquiries and purchases are welcome.

Technical Specifications

No.	Item	Data	Unit
1	Frequency	5925-6425	MHz
2	Test voltage	28	V
3	Current	5.5	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB
7	Connector	SMA/Female
8	Output connector VSWR	≤1.30 (No power and VNA test)

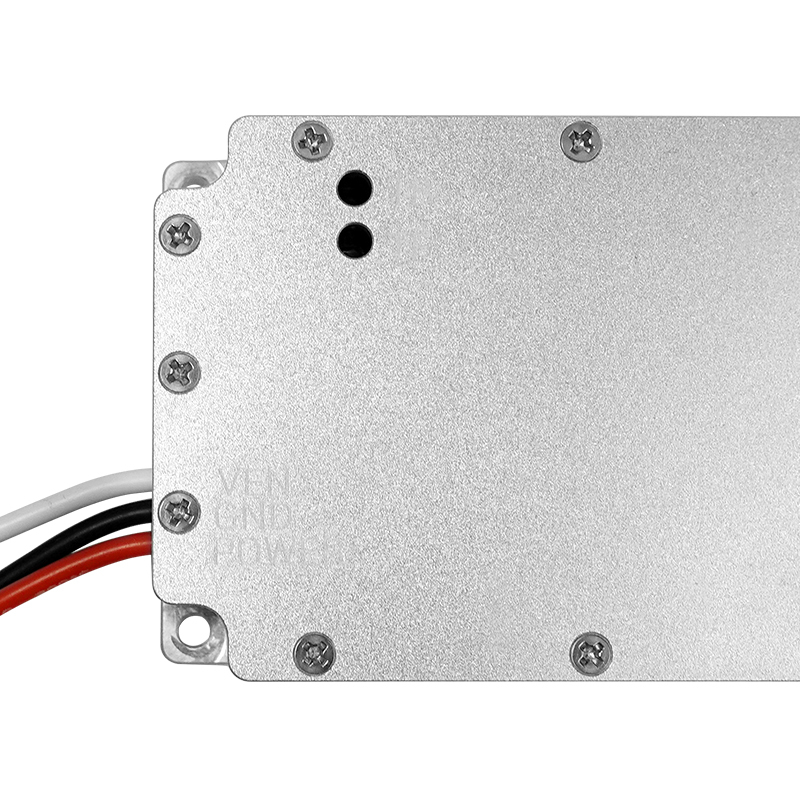

9	Power supply wire	Red+Black+Enable wire
10	Enable Control	High ON Low Off
11	Out shell Size	1325317	mm
12	Mount hole	125*46	mm
13	Weight	200	g
14	Work Temperature	-40~+65	℃
15	Out shell material	Aluminum
16	Vibration need	Car load OK

Key Features

Full 6-7GHz Ultra-Band Coverage: Covers the full 6000-7000MHz band for radar, communication, drone FPV, and 6G/Wi-Fi 6E/7E signal suppression.
High-Power GaN Design for Stronger Jamming: Built with high-efficiency GaN technology for stable high power output, longer jamming distance, and better penetration.
Standard N-Type Connector for Industrial Use: Equipped with professional N-type interface for low loss, high power resistance, anti‑loosening, and stable connection in harsh environments.
Stable & Reliable for Long Operation: Integrated over‑voltage, over‑current, over‑heat, and high VSWR protection. Metal shell with excellent heat dissipation for 24/7 continuous work.
Wide Application: Ideal for drone countermeasure, security protection, radar test, communication shielding, EMC test, and electronic countermeasure systems.

Important Notes

1. Please use the matched voltage.
2. The antenna needs to be connected before powering on.
3. A cooling system is needed for prolonged operation.
4. It works better in areas with unobstructed views.

Frequently Asked Questions

What is the minimum order quantity?

We support orders starting from one piece, but do not offer free samples.

How much of the 50W 6GHz 7GHz drone signal jammer module?

Prices vary depending on the frequency band; please feel free to contact us.

What are the payment methods?

T/T, Alibaba, Paypal, USDT, Alipay, Wechat, etc.

How about the delivery time?

Orders are usually shipped within 5-7 days after placement.
