Informasi Detail

Frekuensi:	2.4ghz 5.2ghz 5.8ghz (disesuaikan)	Memperoleh:	43dBm
VSWR:	≤2	Kekuatan:	20W
Masukan:	0-5dbm	Daya Masukan:	100W
Suhu Operasional:	40～80 º	Ukuran cangkang luar:	1307519mm
Berat:	0,373Kg	Konektor:	Konektor SMA
Bahan cangkang luar:	aluminium
Menyoroti:	20W RF amplifier module , Bidirectional WiFi signal booster , 12-24V DC power amplifier

Deskripsi Produk

Bidirectional 20W 2.4GHz/5GHz RF Power Amplifier Module

This 5G 20W bidirectional power amplifier module provides power amplification and signal enhancement in both transmit and receive modes. Designed for communications and radar applications, it features customizable input parameters (0-5dBm) and output power to suit various operational requirements.

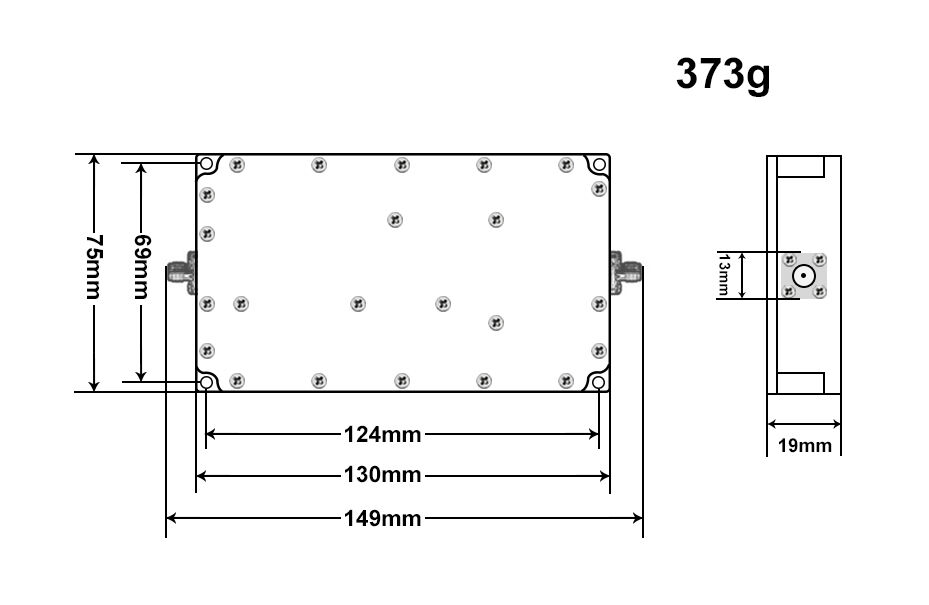

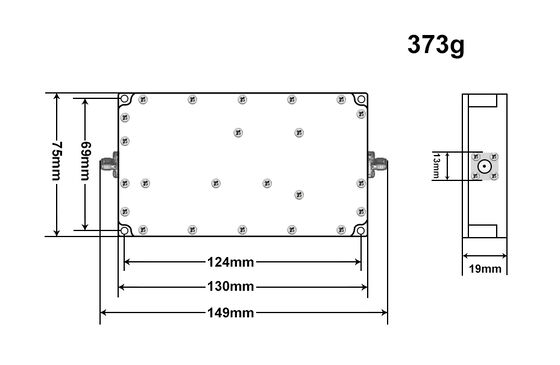

Dimensions: 130×75×19mm
Weight: 0.373kg

Technical Specifications

Parameter	Value	Unit
Frequency	2.4GHz, 5.2GHz, 5.8GHz (customizable)	MHz
Output	20W (customizable)	-
Gain	43	dBm
Flatness	±3	dBm
Work Voltage	50Ω	dB
Input Connector Type	N	-
Lightning Protection	DC Ground	dB
Cable Type	RG316	-
Output Connector VSWR	≤1.50 (No power and VNA test)	-
Outer Shell Size	130×75×19	mm
Material	Aluminum	-
Weight	0.373	kg
Work Temperature	-40 to +65	℃
Installation	Machine installation	-
Vibration Requirement	Car load OK	-

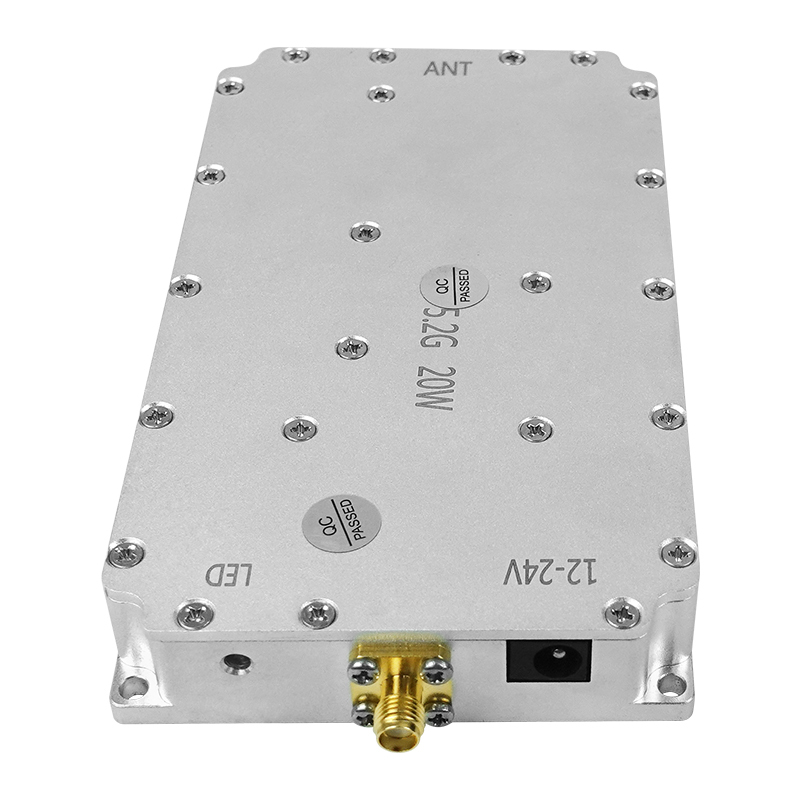

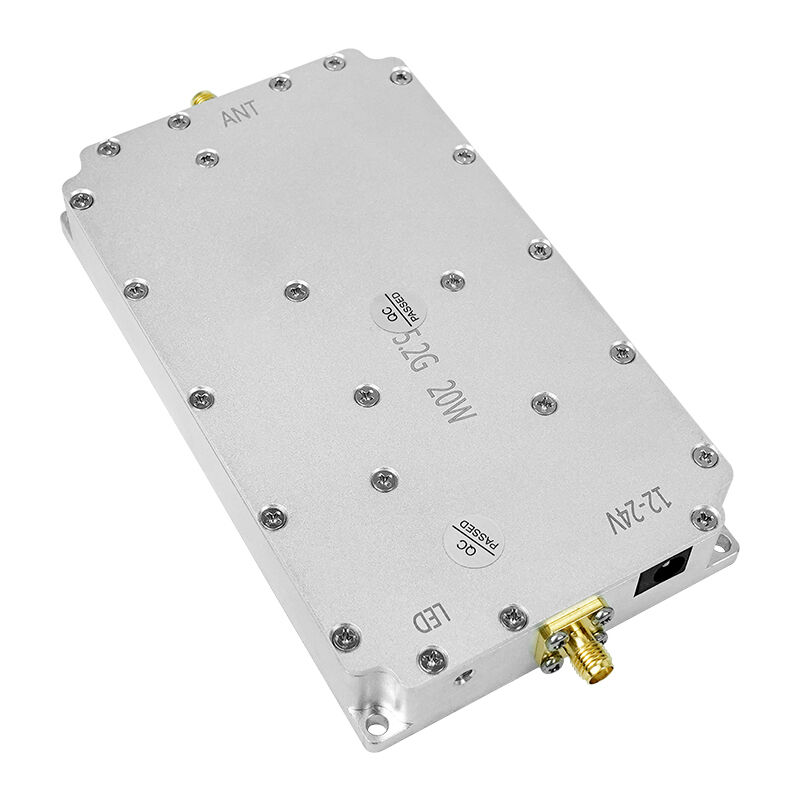

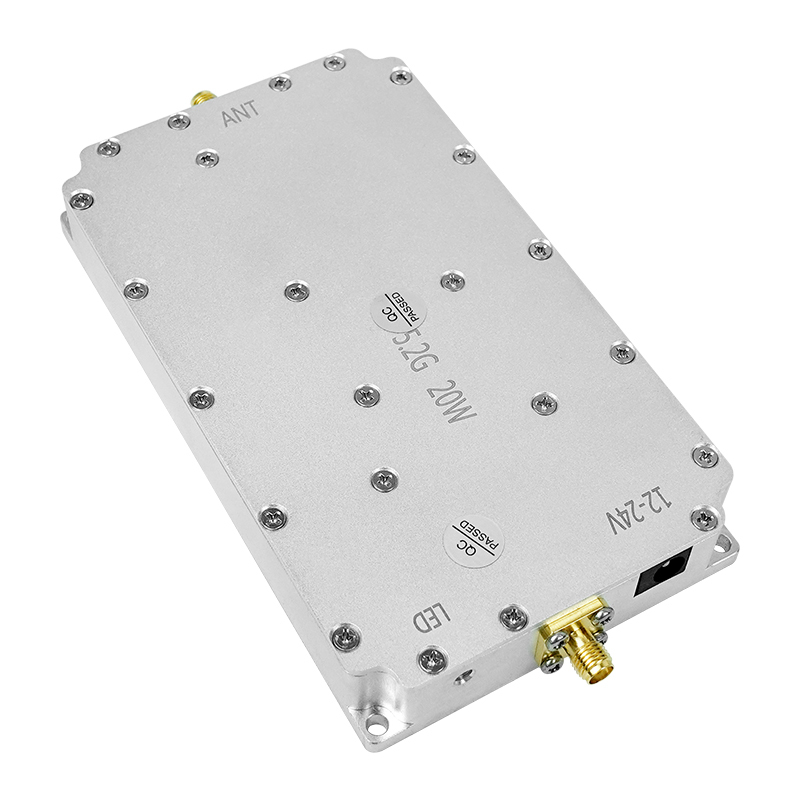

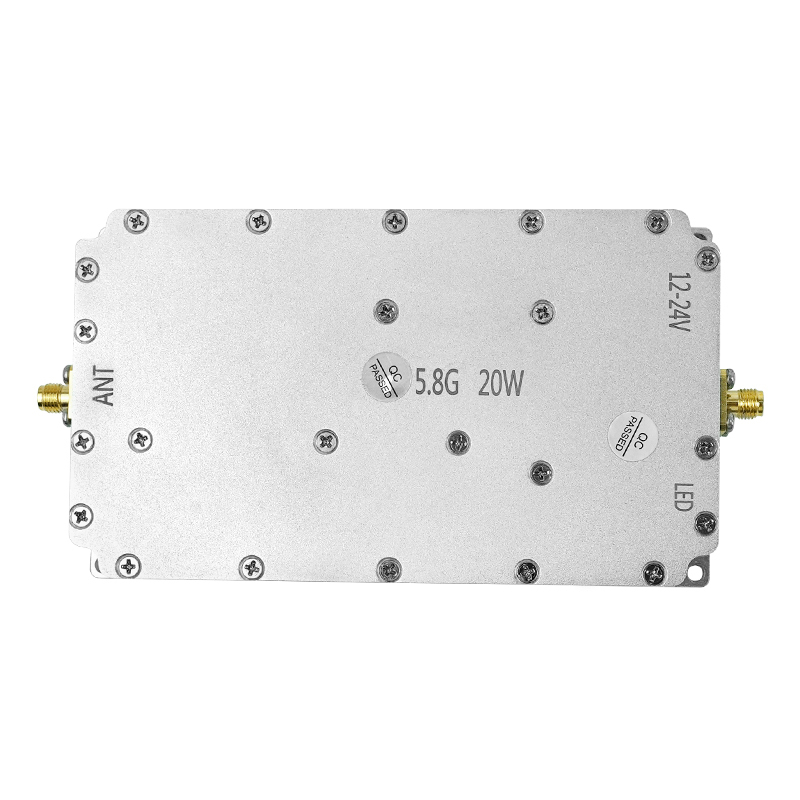

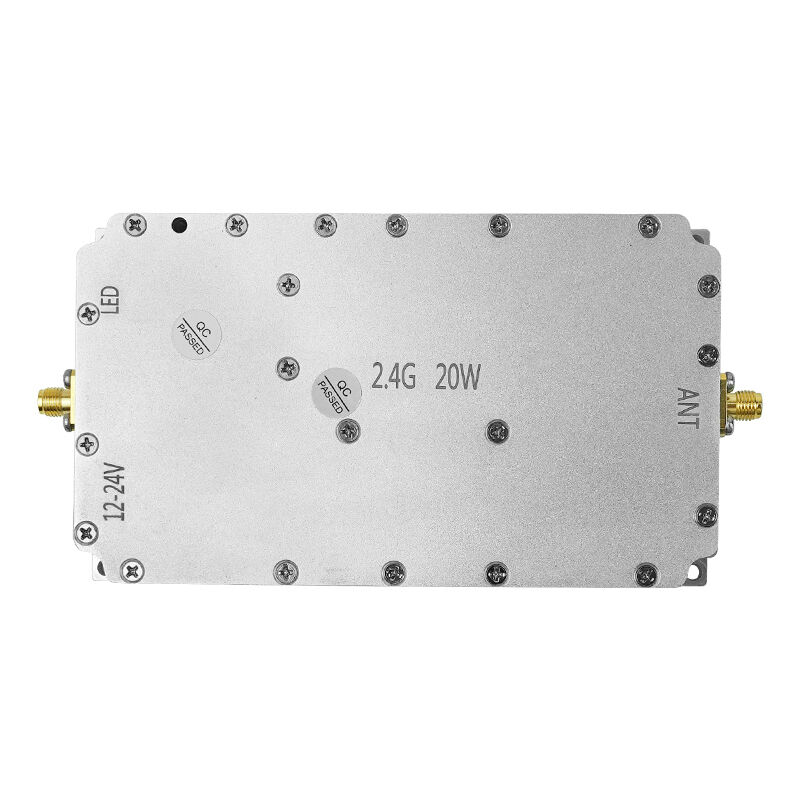

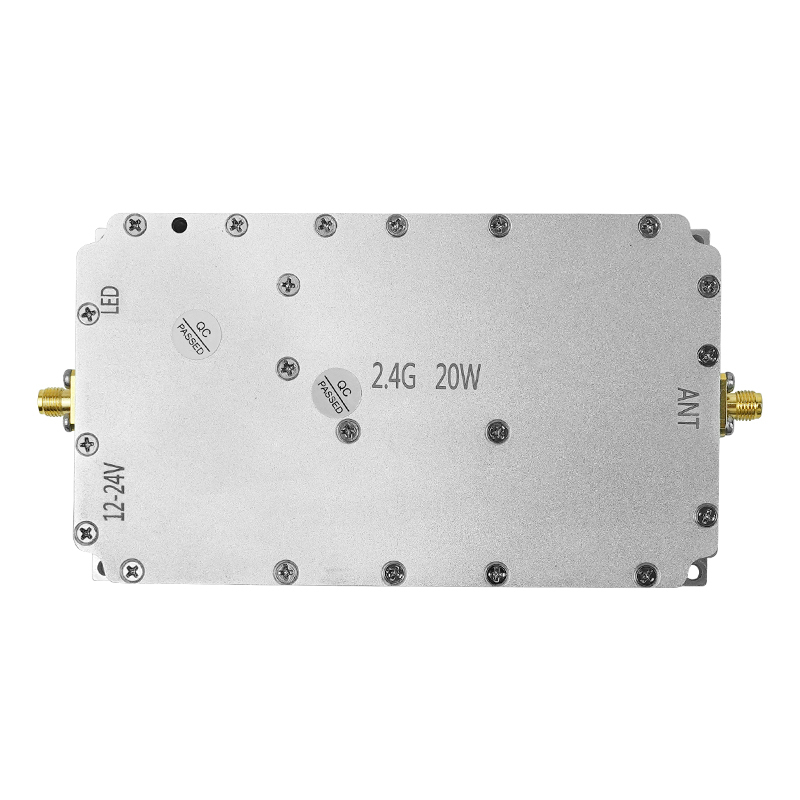

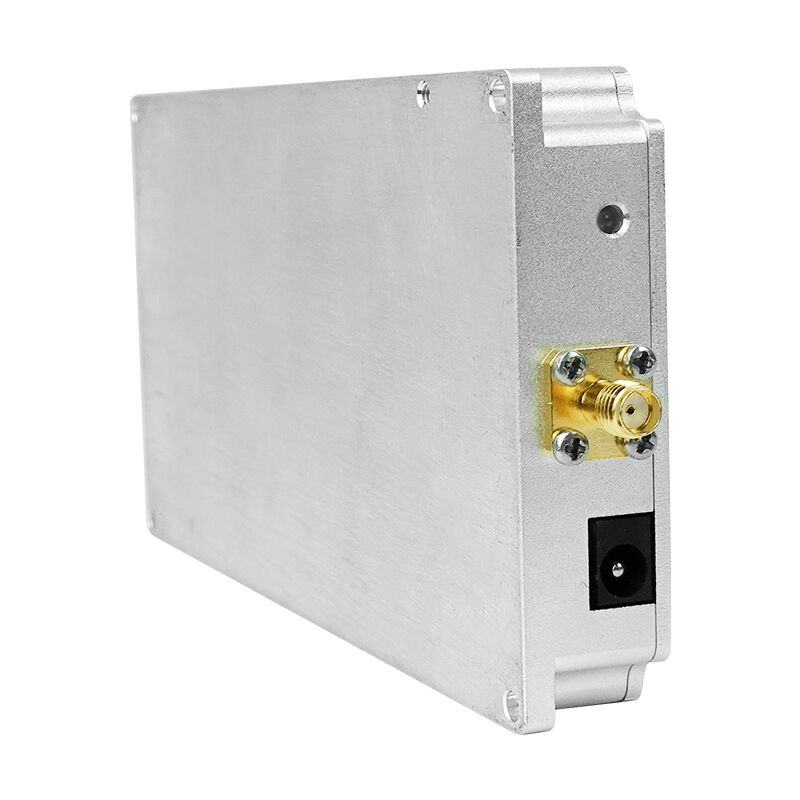

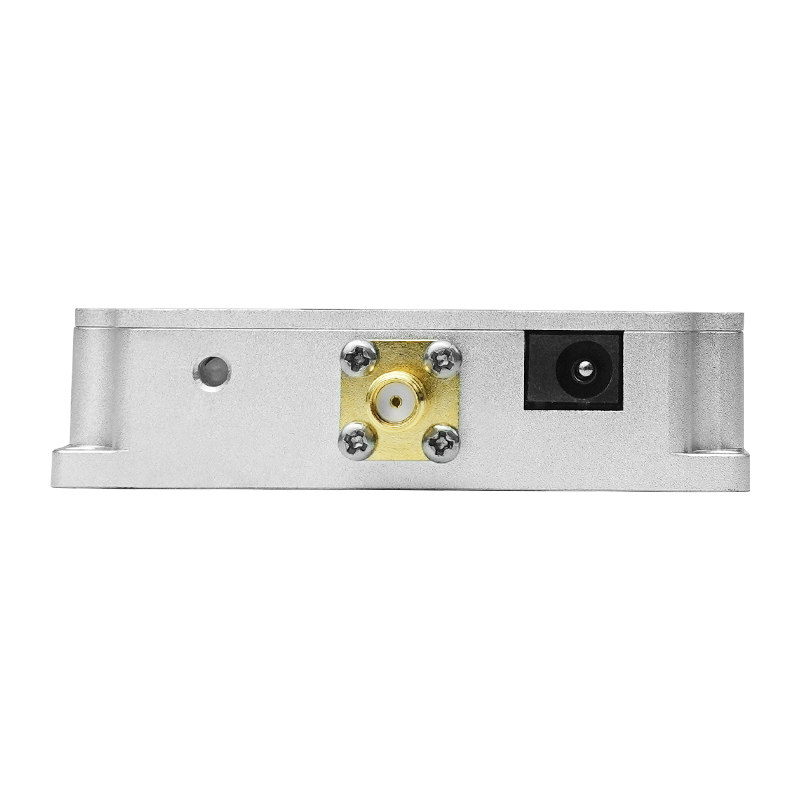

Product Images

Product Features

20W bidirectional power amplifier module
2.4GHz, 5.2GHz, 5.8GHz frequency bands (customizable)
Aluminum casing for durability in complex environments
Input range: 0-5dBm

Product Application

Frequently Asked Questions

Are you a manufacturer?

Yes, our factory is located in Longgang District, Shenzhen. Welcome to visit us here.

MOQ?

1 to 100 pieces

Payment term?

T/T, Alibaba Trade Assurance (Visa, Master card, E-checking, etc), WestUnion, Paypal, etc.

How to proceed with an order?

A. Let us know your requirements and product application through inquiry on Alibaba website
B. We quote according to your specification
C. Customers agree with the quotation and make the payment

What to do if I receive defective products?

Our strict quality control ensures a 100% pass rate. However, products can be damaged in transit. Please share photos or videos of any defective products, and we will provide compensation or send replacement parts.

Factory Pictures

Label:

Tempat asal:	Cina
Nama merek:	TeXin
Sertifikasi:	SGS,ISO9001

Kuantitas min Order:	1
Harga:	Dapat dinegosiasikan
Kemasan rincian:	Kasing atau kotak yang tahan lama
Waktu pengiriman:	3-5 hari
Syarat-syarat pembayaran:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan:	50,00 pcs/bulan
