Texin 28V 0dB input 10-18ghz broadband PA power amplifier module for signal safety

Texin 28V 0dB input 10-18ghz broadband PA power amplifier module for signal safety
Texin 28V 0dB input 10-18ghz broadband PA power amplifier module for signal safety Texin 28V 0dB input 10-18ghz broadband PA power amplifier module for signal safety Texin 28V 0dB input 10-18ghz broadband PA power amplifier module for signal safety Texin 28V 0dB input 10-18ghz broadband PA power amplifier module for signal safety Texin 28V 0dB input 10-18ghz broadband PA power amplifier module for signal safety
Informasi Dasar
Tempat asal: Cina
Nama merek: TeXin
Sertifikasi: CE ISO
Nomor model: TX-CD20W
Kuantitas min Order: 1
Harga: Dapat dinegosiasikan
Kemasan rincian: Kasing atau kotak yang tahan lama
Waktu pengiriman: 5-8 hari
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union
Menyediakan kemampuan: 100000 PER BULAN
Harga terbaik Hubungi sekarang
Informasi Detail
Kekuatan: 20W Frekuensi: 10-18GHz
voltase: 28V Saat ini: 4.2
berat: 164g Ukuran: 80*60*16mm
Aplikasi: Sistem anti drone Bahan: Aluminium
Konektor: SMA
Menyoroti:

28V broadband PA power amplifier

,

10-18GHz RF power amplifier module

,

0dB input signal safety amplifier

Deskripsi Produk

Texin 28V 0dB Input 10-18GHz Broadband Power Amplifier Module
Designed specifically for signal security applications, this broadband power amplifier module offers comprehensive 10-18GHz coverage with bidirectional connector amplification, low 0dB input requirement, and high stability 20W output. Compatible with standard 28V power supply, it eliminates the need for additional preamplification for easy and efficient deployment.
Product Overview
The 10-18GHz 20W solid-state power amplifier from Texin Electronics incorporates advanced protection features including temperature and overcurrent protection. Its compact design ensures convenient portability and installation, while delivering high reliability, efficiency, and smooth output performance.
Technical Specifications
Parameter Value Unit
Frequency Range 10-18 GHz
Operating Voltage 28 V
Current Consumption 4.1-4.2 A
Output Power 20 W
Gain 43 dB
Input Stability 0 dB
Attenuation 31 dB

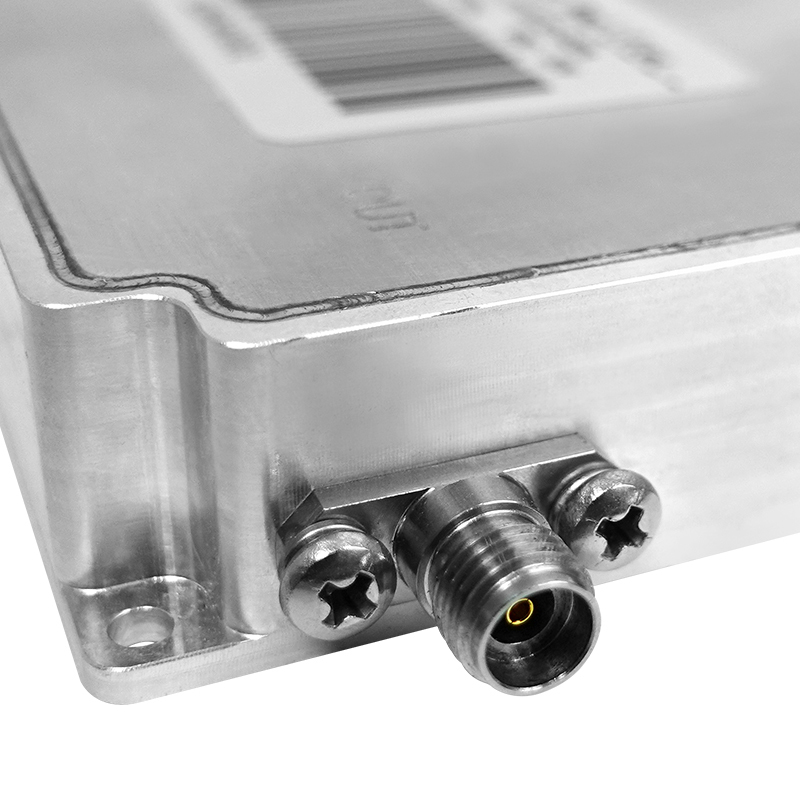

Connector Type SMA/Female
Power Supply Wiring Red+Black+Enable wire

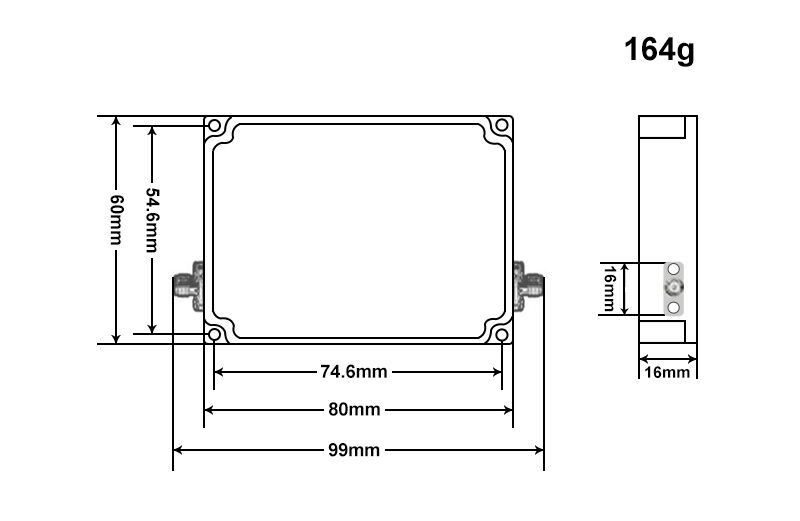

Dimensions 80×60×16 mm
Mounting Hole Pattern 80×60 mm
Operating Temperature -40 to +65 °C
Enclosure Material Aluminum
Vibration Resistance Vehicle Mount Compatible
Key Features
  • Ultra-high frequency coverage across 10-18GHz spectrum
  • Low power consumption with high efficiency operation
  • Compact and lightweight design for easy portability
  • Wide coverage suitable for vehicle-mounted, fixed, and portable jamming systems
Product Images
Texin 28V 0dB input 10-18ghz broadband PA power amplifier module for signal safety 0
Texin 28V 0dB input 10-18ghz broadband PA power amplifier module for signal safety 1
Texin 28V 0dB input 10-18ghz broadband PA power amplifier module for signal safety 2
Applications
  • Satellite Communication: Ground station signal amplification and satellite terminal signal enhancement to increase communication distance and stability
  • Radar Detection: Military and civilian radar systems for airborne, shipborne, and ground radar applications
  • National Defense & Aerospace: RF signal amplification for defense communication and aerospace equipment meeting military-grade standards
  • Microwave Testing: Core amplification component for microwave testing equipment and RF testing applications
Frequently Asked Questions
What is the minimum order quantity?
We support orders starting from one piece, but do not offer free samples.
What is the price of the 100W anti-drone jamming module?
Prices vary depending on the frequency band. Please contact us for specific pricing.
What payment methods do you accept?
We accept T/T, Alibaba, PayPal, USDT, Alipay, WeChat, and other payment methods.
What is the delivery time?
Orders are typically shipped within 5-7 days after placement.
